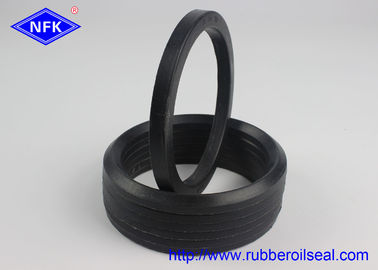

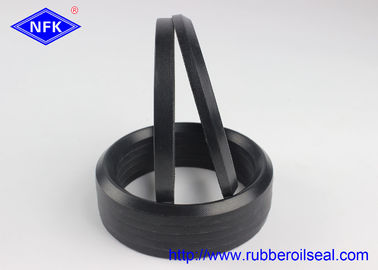

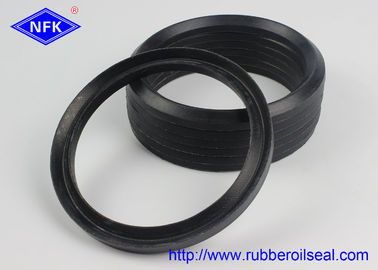

Factory Direct V99F JIS B2403 V-Packing 112*132*5 PVP-112K Hydraulic Seal Piston Rod Seal High Quality
| اندازه | 112*132*5 | محل مبدا | چین |
|---|---|---|---|
| شماره مدل | بسته بندی V | نام محصول | بسته بندی V |
| تایپ کنید | بسته بندی V | MOQ | 20 عدد |
| مواد | پارچه تقویت شده پارچه نیتریل | رنگ | مشکی |
| برنامه | سیلندر هیدرولیک | استاندارد یا غیر استاندارد | ستمگر |
| گواهی | ISO9001 | نمونه | خیر |
| سبک | هیدرولیک | ||
| برجسته کردن | JIS B2403 V-Packing hydraulic seal,PVP-112K piston rod seal,112*132*5 hydraulic rod seal,PVP-112K piston rod seal,112*132*5 hydraulic rod seal |
||
Factory Direct V99F JIS B2403 V-Packing 112*132*5 PVP-112K Hydraulic Seal Piston Rod Seal High Quality
|
Product Name:
|
V-packing
|
|
Type:
|
V-packing
|
|
Size:
|
112*132*5 |
|
Brand:
|
China
|
|
Color:
|
Black
|
|
Material:
|
Fabric reinforced nitrile rubber
|
|
Place of Origin:
|
China
|
|
Standard:
|
standard
|
|
OEM/ODM
|
OEM Accept
|
|
Application:
|
hydraulic cylinder
|
|
Service:
|
What size is required, please contact us for consultation.
|
-
Product Name: High Quality China V99F JIS B2403 V-Seal V-Packing 112*132*5 Hydraulic Cylinder Piston Rod Seal
-
Origin: China (High-quality manufacturing, strict quality control system)
-
Standard Compliance: JIS B2403:2009 (Japanese Industrial Standard), ensuring compatibility and performance consistency with international hydraulic equipment standards
-
Seal Type: V-Seal / V-Packing, modular sealing system composed of male adapter, intermediate V-shaped rings, and female adapter
-
Application Type: Hydraulic Cylinder Piston Rod Sealing, suitable for both piston and rod seals in hydraulic systems
-
Material: High-grade fabric-reinforced nitrile rubber (NBR) as the main material, with optional BC3 equivalent bronze adapters for high-pressure applications; the material offers excellent oil resistance, wear resistance, and pressure resistance, ensuring stable performance in petroleum-based hydraulic oil environments
-
Working Medium: Petroleum-based hydraulic oil (compatible with most standard hydraulic fluids used in industrial equipment)
-
Working Pressure: Up to 8 MPa (1160 psi); for pressures exceeding 8 MPa, BC3 equivalent adapters are recommended for enhanced structural support
-
Working Temperature: -20℃ ~ +120℃ (-4℉ ~ 248℉), adaptable to most industrial working environments, maintaining elasticity and sealing performance without deformation or failure
-
Surface Finish Requirement: Piston rod surface should be buffed to 0.2~0.4 μm Ra (0.8~1.6 μm Rz); cylinder tube inner surface should be burnished or honed to 0.1~0.8 μm Ra (0.4~3.2 μm Rz) for optimal sealing effect
-
Construction Machinery: Hydraulic cylinders of excavators, cranes (telescopic truck cranes), loaders, bulldozers, and other construction equipment, where the seal must withstand high pressure, frequent reciprocating motion, and dust contamination.
-
Industrial Machinery: Hydraulic systems of machine tools, presses, injection molding machines, and conveyor equipment, ensuring leak-free operation and stable system pressure to improve production efficiency.
-
Mining Machinery: Hydraulic cylinders of mining trucks, crushers, and drilling equipment, adapting to high-pressure, high-wear, and dusty working conditions, reducing maintenance frequency and downtime.
-
Agricultural Machinery: Hydraulic systems of tractors, harvesters, and agricultural equipment, withstanding temperature changes and outdoor harsh environments, ensuring reliable operation during farming seasons.
-
Other Hydraulic Equipment: Hydraulic pumps, valves, and other hydraulic components that require V-seal packing, compatible with both single-acting and double-acting cylinders, providing versatile sealing solutions.
1. To affordable, Product range, fast delivery.
2. Product specifications more than 30,000 kinds of stocks over 50 million.
3. TO provide customers with professional technical and services for engineers.
4. Which can provide Seals provide customersa with a variety of sealing solutions.
We maintain a large inventory of standard V99F JIS B2403 V-Seal V-Packing to ensure fast delivery and meet your urgent needs. Our inventory and delivery time details are as follows:
- Inventory Status: In stock, ready for immediate shipment. We update our inventory in real time; if the order quantity exceeds the current inventory, we will arrange production immediately, and the production cycle will be 3-5 working days for standard products.
- Delivery Time:
- For orders ≤ 50 pieces: Shipped within 2-3 working days after payment confirmation.
- For orders 100~500 pieces: Shipped within 5-7 working days after payment confirmation.
- For orders > 500 pieces or custom orders: Shipped within 15 working days after production completion (production cycle depends on customization requirements).
- Shipping Methods: We cooperate with international logistics companies (DHL, FedEx, UPS, TNT, and EMS) to provide fast and reliable shipping services. You can choose the shipping method according to your needs:
- Express Shipping (DHL/FedEx/UPS/TNT): 3-7 working days to most countries and regions, suitable for urgent orders.
- Air Freight: 7-10 working days, suitable for large-quantity orders with lower cost than express shipping.
- Sea Freight: 20-35 working days, suitable for bulk orders with the lowest shipping cost.
- Shipping Cost: The shipping cost depends on the order quantity, shipping method, and destination country/region. We will provide you with the most competitive shipping quote after you place the order. We can also use the carrier of your choice if needed.
- Tracking Information: After shipment, we will send you the tracking number via email or message, allowing you to track the package status in real time until it is delivered safely. We will also follow up on the shipment progress and solve any logistics problems in a timely manner.
Q1: What is your delivery time?
A: Inventory: generally 1-3 days.
