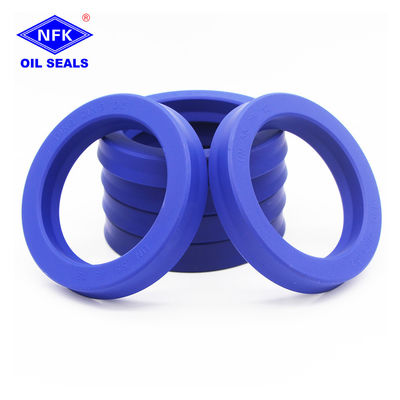

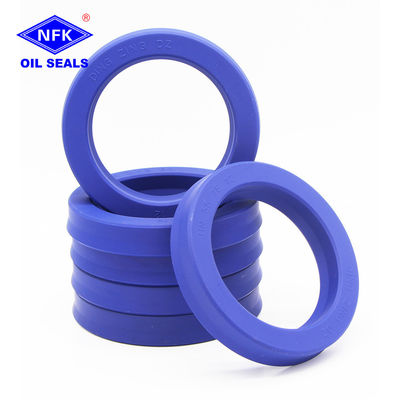

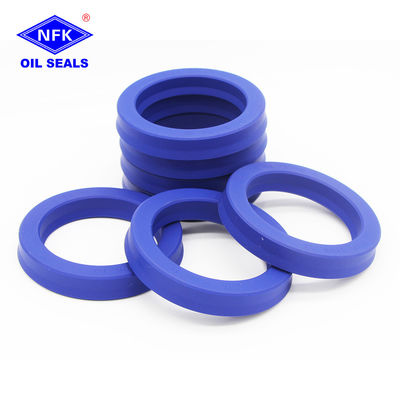

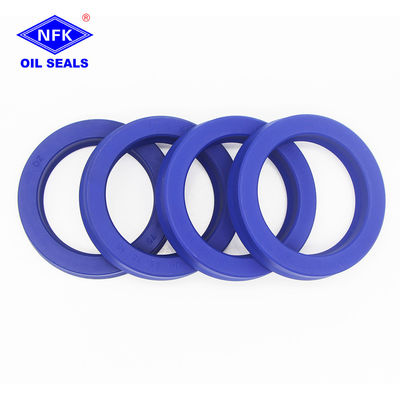

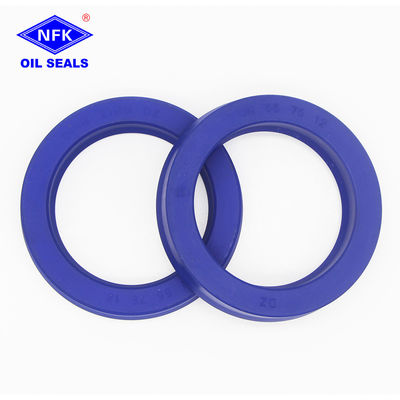

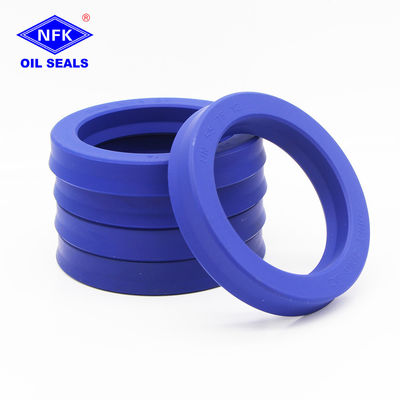

Taiwan Brand High Temperature Wear And Corrosion Resistance Ding Zing UN 190*210*12 PU Piston Rod Seal Ring
| محل منبع | تایوان |
|---|---|
| نام تجاری | DINGZING |
| شماره مدل | UN 190*210*12 |
| مقدار حداقل تعداد سفارش | 20 قطعه |
| قیمت | US$14.42/pieces |
| جزئیات بسته بندی | بسته بندی صنعتی اصلی ، بسته بندی خالی ، بسته بندی NFK |
| زمان تحویل | 3-4 روز کاری پس از پرداخت |
| شرایط پرداخت | L/C ، D/A ، D/P ، T/T ، Western Union ، MoneyGram |
| قابلیت ارائه | 1200 قطعه |
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتس اپ:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| اندازه | 190*210*12 | شماره مدل | سازمان ملل متحد |
|---|---|---|---|
| نام | مهر | شکل | مهر و موم حلقه |
| دامنه کاربرد | سیلندر هیدرولیک | ماهیت | مقاوم در برابر درجه حرارت بالا ، سایش و خوردگی |
| رنگ | رنگ آبی | کاربرد | سیلندر مکانیکی |
| سرعت کار | 0.03 ~ 0.5m/ثانیه | OEM | قابل دسترس |
| محل مبدا | تایوان | مواد | پلی اورتان (TPU) |
می توانید محصولات مورد نیاز خود را علامت بزنید و در صفحه پیام با ما ارتباط برقرار کنید.
| TYPE | SIZE | |
|---|---|---|
| UN | 190*210*12 | |
| UN | 190*210*15 | |
| UN | 190*215*15 | |
| UN | 190*215*16 | |
| UN | 190*220*15 | |
| UN | 190*220*22 | |
| UN | 195*215*15 | |
| UN | 195*220*15 | |
| UN | 200*215*12 | |
| UN | 200*216*18 | |
| UN | 200*220*12 | |
| UN | 200*220*12.5 | |
| UN | 200*220*15 | |
| UN | 200*220*18 | |
| UN | 200*225*15 | |
| UN | 200*225*16 | |
| UN | 200*230*15 | |
| UN | 200*230*18 | |
| UN | 200*230*22 | |
| UN | 200*235*20 | |
| UN | 205*230*20 | |
| UN | 210*225*15 | |
| UN | 210*230*12 | |
| UN | 210*230*15 | |
| UN | 210*235*15 | |
| UN | 210*235*18 | |
| UN | 210*240*18 | |
| UN | 215*240*16 | |
| UN | 215*240*19 | |
| UN | 220*240*12 | |
| UN | 220*240*15 | |
| UN | 220*245*18 | |
| UN | 220*250*15 | |
| UN | 220*250*18 | |
| UN | 220*250*22 | |
| UN | 225*240*12 | |
| UN | 225*250*19 | |
| UN | 225*255*26 | |
| UN | 230*250*12 | |
| UN | 230*250*12.5 | |
| UN | 230*250*15 | |
| UN | 230*255*18 | |
| UN | 230*260*18 | |
| UN | 235*255*12 | |
| UN | 235*260*16 | |
| UN | 240*260*16 | |
| UN | 240*265*16 | |
| UN | 240*270*18 | |
| UN | 250*270*12 | |
| UN | 250*270*15 | |
| UN | 250*275*19 | |
| UN | 250*280*18 | |
| UN | 250*280*19 | |
| UN | 250*280*25 | |
| UN | 255*280*19 | |
| UN | 260*280*14 | |
| UN | 260*280*18 | |
| UN | 260*290*18 | |
| UN | 265*290*19 | |
| UN | 270*300*15 | |
| UN | 270*300*18 | |
| UN | 275*300*16 | |
| UN | 280*300*15 | |
| UN | 280*300*18 | |
| UN | 280*305*16 | |
| UN | 280*310*20 | |
| UN | 290*320*18 | |
| UN | 300*330*18 |
توضیحات محصول
Taiwan Brand High Temperature Wear And Corrosion Resistance Ding Zing UN 190*210*12 PU Piston Rod Seal Ring
Product Description
DINGZING Brand Introduction
DingZing Advanced Materials Inc. is one of the world's leading providers of thermoplastic polyurethane (TPU) products and solutions.
For more than thirty-plus years, DingZing has been producing high-performance TPU seals. Using only the finest raw materials and following the strictest quality control measures from production to packaging, we at DingZing continue to produce seals with excellent tensile strength,outstanding compression deformation rates, and reliable resistance to both temperature and pressure. Today, our 5,000-plus seals carry the DingZing DZ9 trademark name, which has become one of the most trusted product brands in the industry. As a clear testament to our commitment to quality, all of our seals are proudly embossed with the DingZing DZO brand name.
|
Product Name:
|
Piston/ Rod Seal；U-SEAL
|
Place of Origin:
|
Taiwan,China
|
||
|
Type:
|
UN
|
Standard:
|
standard
|
||
|
Size:
|
190*210*12
|
Tempreture:
|
-20℃～+100℃
|
||
|
Brand:
|
DINGZING DZ
|
Pressure:
|
30Mp
|
||
|
Color:
|
Blue
|
OEM/ODM
|
OEM Accept
|
||
|
Material:
|
TPU/8L953
|
Application:
|
hydraulic cylinder
|
||
|
Certificate:
|
No
|
Service:
|
Customize Special Sizes
|
||
|
MOQ:
|
20pcs According to the packing quantity
|
|
|
||
1......Product characteristics
1. Speed = >Mechanical movement speed is high, the lubrication oil film may be destroyed, because of not good lubrication and friction heating oil seal, cause life is greatly reduced, we use polyurethane or rubber oil seal at 0.03 m/s ~ 0.8 m/s speed within the scope of work is good.
2. The temperature= > Low temperature will lower the elasticity of polyurethane or rubber seal, cause leaks, and even the entire oil seal becomes hard and brittle. High temperature can make oil seal volume expansion, soft, cause movement oil seal friction resistance increase rapidly and reduce the compression capacity. Suggest polyurethane or rubber oil seal work continuously - 10 ℃~ + 80 ℃ temperature range.
3. Should= > Consider when pressure = "high pressure oil seal compression deformation, repellent extrusion ring, groove processing aspect also have special requirements. For get together ammoniac fat sealing the best working pressure in the range of 2.5 ~ 31.5MPa.
4. Load=>Oil cylinder can bear larger load, seal and bearing ring in a completely different role, suggest polyurethane sealing ring to ensure that the cylinder can bear larger load.
1. Speed = >Mechanical movement speed is high, the lubrication oil film may be destroyed, because of not good lubrication and friction heating oil seal, cause life is greatly reduced, we use polyurethane or rubber oil seal at 0.03 m/s ~ 0.8 m/s speed within the scope of work is good.
2. The temperature= > Low temperature will lower the elasticity of polyurethane or rubber seal, cause leaks, and even the entire oil seal becomes hard and brittle. High temperature can make oil seal volume expansion, soft, cause movement oil seal friction resistance increase rapidly and reduce the compression capacity. Suggest polyurethane or rubber oil seal work continuously - 10 ℃~ + 80 ℃ temperature range.
3. Should= > Consider when pressure = "high pressure oil seal compression deformation, repellent extrusion ring, groove processing aspect also have special requirements. For get together ammoniac fat sealing the best working pressure in the range of 2.5 ~ 31.5MPa.
4. Load=>Oil cylinder can bear larger load, seal and bearing ring in a completely different role, suggest polyurethane sealing ring to ensure that the cylinder can bear larger load.
We are able to provide:
Oil seal & seals series:
N O K oil-seals , DINGZING seal ,Mechanical hydraulic oil cylinder repair kits , Hydraulic Breaker seal kit , Pump repair kits,Diaphragm ,Hydraulic Seal ,Piston seal,Dust wiper,Rod seal ,Buffer seal,Backup ring ,Dust seal,Wear ring, Bushings,Combined,sealing, O-ring,X-ring,Backup ring, Coupliing....
Piston seal : SPGW SPGO SPG SPGA NCF ODI OSI OUIS OHM OKH DAS , OK SELA OUY D-8.....
Rod Seal : IDI IUH ISI IUIS D-2 D-3 D-6......
U Seal : UPI UPH USH USI V99F V96H UN......
Buff Seal : HBTS HBY HBTTS D-14......
Wiper Seal : DKB DKBI DKBI3 DKBZ DKI , DWI DKH DWIR DSI LBI LBH VAY DH ME-2 ME-8.....
Wearing Ring : WR KZT RYT.....
Rotary Seal : ROI D-14 SPN......
Back Up Ring : N4W BRT-PTFE BRT-NYLON BRT2 BRT3 BRT-G BRT-P BRN2 BRN3......
O Ring : Oring Kit P series G series AS series S series M 1.5 series M 2.0 series M 1.9series M 2.4 series M 3.0 series M4.0 series.....
D Ring : DRP , DRI.....
Oil Seal -- TC TB TCV TCN DB DC DCY TC4Y........
Valve Pusher Floating oil seal Bushing hydraulic cylinder seals cylinder seal kits.....
Guarantee the original factory authentic, high-quality supply, support small batches and multiple specifications to get goods.Because our company has many models of seal kits, we cannot show you all of them, if the Model you need is not in this list,please contact us for consultation.
Seal Kit Series:
Aftermarket repair kits for Excavators :
KOMATSU,CATERPILLAR,HITACHI,KOBELCO,SUMITOMO,KATO,DAEWOO,HYUNDAI,SANY,LIUGONG,YUCHAI,XCMG,YANMAR,LIEBHERR,SDLG,JCB,CASE,KUBOTA,VOLVO...........
KOMATSU,CATERPILLAR,HITACHI,KOBELCO,SUMITOMO,KATO,DAEWOO,HYUNDAI,SANY,LIUGONG,YUCHAI,XCMG,YANMAR,LIEBHERR,SDLG,JCB,CASE,KUBOTA,VOLVO...........
